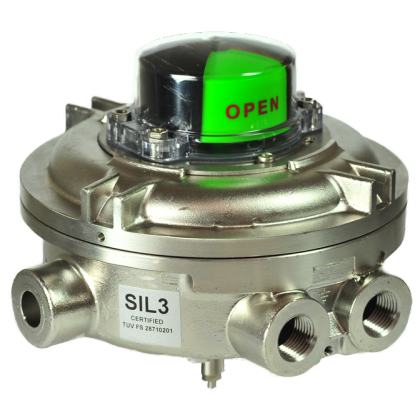

SOLDO SW1F30E-20G25I6 SW series limit switch box.
Heavy-duty limit switch boxes, designed for hazardous areas, provide a visual and electrical remote position feedback on automated valves.
Available in 316 stainless steel, the explosion proof enclosure matches the Ex d IIC T6 standards. The SW limit switch box serie, thanks to its large inner volume able to host up to 6 switches and spare pass through terminals and the four cable entries either metrics or imperial, provide a highly customizable solution meeting a wide range of applications. These including, but not limited to, the Oil and Gas, both onshore and off shore, and Petrochemical industries.
Features:
√ Twin shaft design, ensuring a complete sealed device: the shaft is splitted in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation.
√ Suitable for artic application, down to -60°C
√ Enhanced flexibility of electrical feedbacks options.
√ Up to four cable entries available in different sizes.
√ 316 stainless steel housing for extremely hostile and corrosive environments.
√ Easy wiring through the terminal PCB board.
√ NOVA V3 switch option ensures extreme durability and high power switching capabilities.
√ 4-20 mA position transmitter options.
√ Single tool opening design, allowing the operator to unscrew the lid by hand after removing the locker.
SOLDO SW series heavy-duty limit switch box
