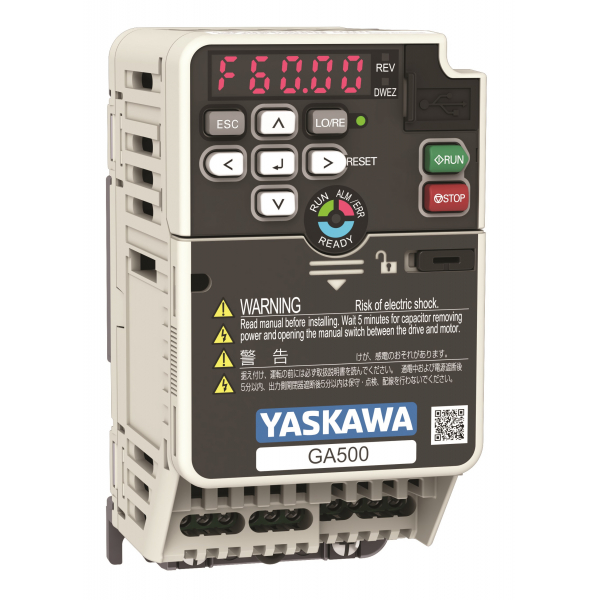

Yaskawa AC variable frequency drive GA50UB001ABA. The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.

Features
No power programming
Intuitive keypad
Conformal coated (IEC 60721-3-3: 3C2, 3S2)
Up to 30% smaller than the competition
Current vector control, open loop
Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
SIL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
Embedded Modbus communication
Wide variety of communication options
Variety of mounting methods (standard, IP20/UL Type 1, side-by-side, external heatsink, DIN rail)
Embedded 24 Vdc power supply
Maintenance monitors
Cooling fan replacement without tools
Optional LCD or Bluetooth keypad
Global certifications (CE, UL, cUL, TUV, RCM)
MTBF: 28 years
Short Circuit Current Rating (SCCR): 31 kA rms symmetrical
Common programming with all other Yaskawa drives
DriveWizard Industrial software for parameter management and start-up
DriveWizard Mobile application for smartphones and tablets
Function Block Diagram (FBD) programming via DriveWorksEZ™

Yaskawa AC variable frequency drive GA50UB001ABA
