The ABB TB82TE 2-wire conductivity transmitter are available in three base configurations to use ABB’s 2-electrode, 4-electrode or toroidal (electrodeless) sensors, allowing for installations ranging from ultra-pure water to the most difficult chemical applications.

The TB82 is available with traditional programmable outputs or with advanced digital communications using FOUNDATION Fieldbus (FF), PROFIBUS PA (PA) or HART. Setup, maintenance and operation in the field is simple. Easyto-follow instructions appear above each smart key. A unique secondary display clearly defines each menu option when programming the transmitters. During normal operation, the secondary display may be configured to show process temperature, current output, concentration type, raw conductivity or software revision depending upon configuration. The TB82 transmitters meet current CE, NEMA 4X, IP65, CSA, FM, ATEX and FISCO requirements.

TB82: TB82EC 4-electrode transmitter, TB82TC toroidal transmitter, TB82TE 2-electrode transmitter.

Type

2-wire conductivity transmitter:

• 2-electrode model TB82TE

• 4-electrode model TB82EC

• Toroidal model TB82TC

Input sensor types

TB82TE: ABB 2-electrode sensors

TB82EC: ABB 4-electrode sensors

TB82TC: ABB toroidal sensors

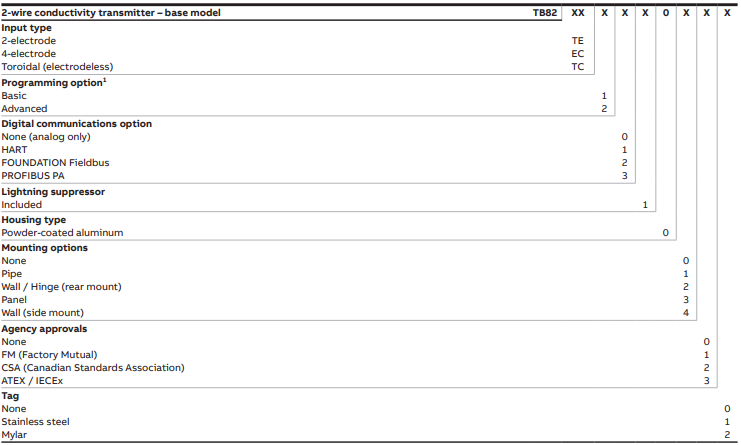

Ordering information

Accessories

Panel-mount kit: 4TB9515-0123

Pipe-mount kit: 4TB9515-0124

Hinge-mount kit: 4TB9515-0125

Wall-mount kit: 4TB9515-0156
