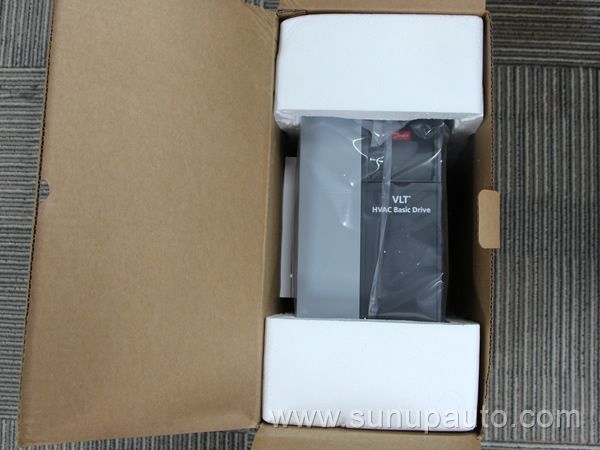

Danfoss FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX 131L9869 VLT® HVAC basic drive delivers highly reliable HVAC performance for basic fan and pump operations.

VLT® HVAC Basic Drive FC 101

(P11K) 11 KW / 15 HP, (4) 380 - 480 VAC, (E20) IP20 / Chassis,

(H4) RFI class A1 (C2), (X) No brake chopper, (X) No Mains Option

(AX) No A Option, (BX) No B Option, (C) Coated PCB

The VLT® HVAC Basic Drive is supplied with built-in functions that reduce initial costs and increase productivity. It is the most compact unit in its class. Integrated DC coils reduce harmonics to an absolute minimum, and the Automatic Energy Optimizer saves 15-25% energy from the second you turn the it on. Achieve the lowest cost of ownership with a premier drive dedicated to ventilation, heating, and refrigeration applications.

Range

3 x 200 – 240 V............ 0.25 – 45 kW

3 x 380 – 480 V............ 0.37 – 90 kW

3 x 525 – 600 V............   2.2 – 90 kW

Feature

● Easy to configure, install, and wire

● Flying Start: Reduced mechanical wear on equipment

● Built-in PI controller

● Integrated fan, pump functionality

● Fire Override Mode for enhanced safety

● Automatic Energy Optimizer function Saves 5 – 15% energy

● Built-in DC coils – no harmonic concerns
