Spot sales WAGO 281-916 and 280-901 2-conductor carrier terminal block.

News December 07, 2020

WAGO 281-916 2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray.

WAGO 280-901 2-conductor through terminal block; 2.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; gray.

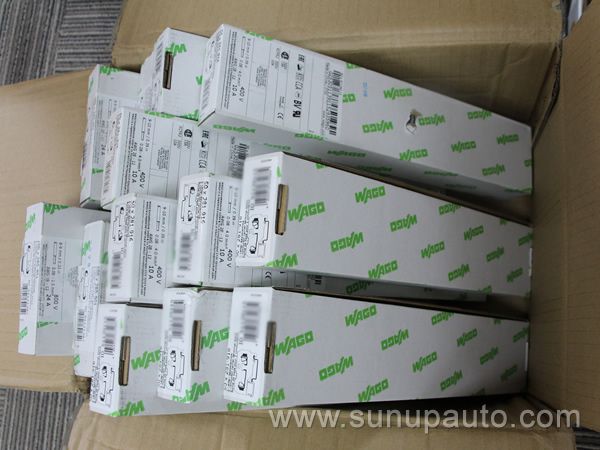

WAGO 281-916_280-901


WAGO 281-916 RAIL-MOUNT TERMINAL BLOCKS:

Nominal voltage: 400 V

Rated surge voltage: 6 kV

Rated current: 10 A

Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG

Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG

Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Width: 6 mm / 0.236 inch

Height from upper-edge of DIN-rail: 29 mm / 1.142 inch

Depth: 59 mm / 2.323 inch

Design: horizontal type

Mounting type: DIN-35 rail


WAGO 280-901 RAIL-MOUNT TERMINAL BLOCKS:

Nominal voltage: 800 V

Rated surge voltage: 8 kV

Rated current: 24 A

Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG

Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Width: 5 mm / 0.197 inch

Height from upper-edge of DIN-rail: 28 mm / 1.102 inch

Depth: 53 mm / 2.087 inch

Design: horizontal type

Mounting type: DIN-35 rail


Note:

Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.


281-917:

2-conductor carrier terminal block

for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; blue


281-610:

3-conductor carrier terminal block

for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray


281-656:

4-conductor carrier terminal block
