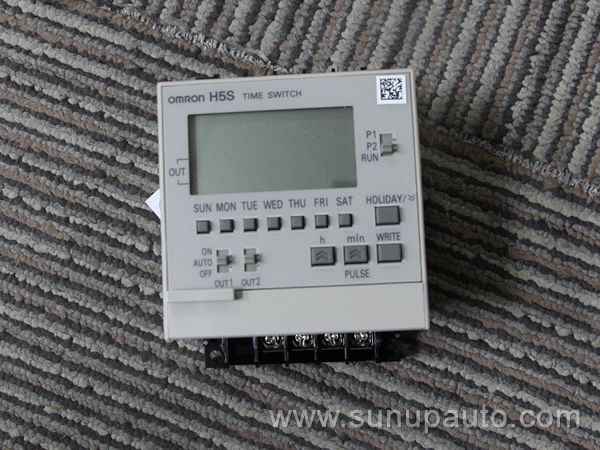

Omron H5S-WFB2 digital time switch / electronic timer. Easier, More Convenient Time Switches, with New 4-circuit Output and Yearly Models in Addition to 2-circuit Weekly Models.

Omron H5S Electronic Timer, Operation Mode 7 Days, Number of Channels 2, Contact Form (2) SPST-NO, Voltage 120 to 240VAC, Amps 15, Events Available - Electronic Timer 40, Available Actions - Electronic Timer On/Off, Pulse, Cycle, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event, 1 Cycle Action = 4 Events, Pulse Duration 1 sec. to 60 min., Mounting Surface or Track, Min. Time Setting 1 min., Max. Time Setting 7 days, NEMA Rating 1, Color Light Gray, Backup Time 5 yr.

Features

• Independent Day Keys provide easier operation.

• Temporary holiday setting function makes it easy to turn OFF output for holidays and non-operating days.

• Settings can be made even with the Time Switch turned OFF.

• Test mode enables easy program checking.

• Complies with EMC Directives, UL/CSA, and other safety standards.

• Includes summer time (DST) adjustment. Yearly models also offer automatic switching to DST.

• Set value can be changed both upward and downward for speedier setting.

• Integrated temperature compensation circuit helps keep accurate time over a wide temperature range.

• Includes time counter and total counter functions with alarm indicator.

• Bank function allows program switching by an external input.

• New 4-circuit output models with a compact, 72 × 72-mm DIN size added to the series.

Omron H5S digital time switch / electronic timer more models:

H5S-WB2

H5S-WB2D

H5S-WFB2

H5S-WFB2D

H5S-YB2-X

H5S-YB2D-X

H5S-YFB2-X

H5S-YFB2D-X

H5S-YB4-X

H5S-YB4D-X

H5S-YFB4-X

H5S-YFB4D-X

H5S-WFB2

Y92A-72C

Y92F-90

Y92A-72H

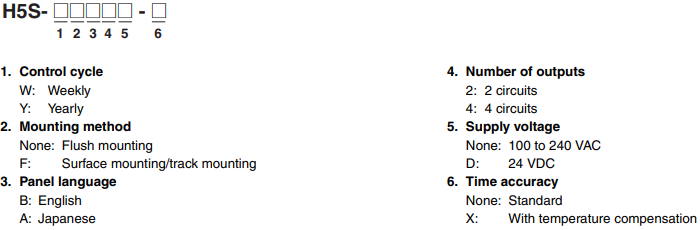

Model Number Legend

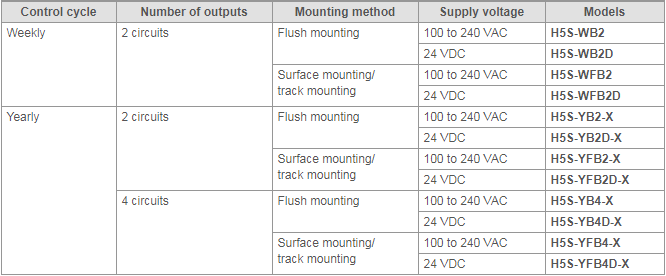

Ordering Information

Accessories (Order Separately)
