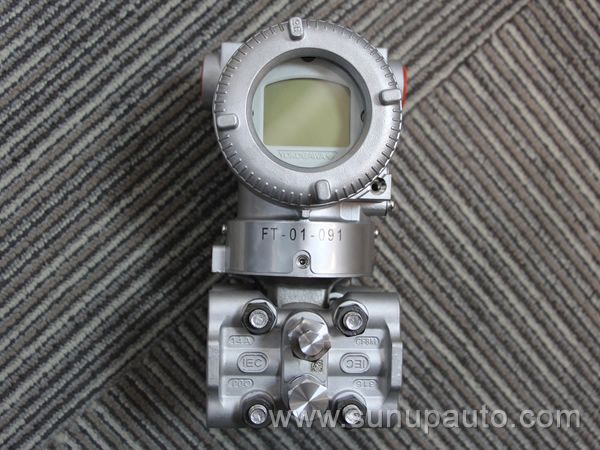

Yokogawa EJA110E-FMS4G-922DB/NS25/M11 Differential Pressure Transmitter. The high-performance differential pressure transmitter EJA110E features a single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA110E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

Yokogawa EJA110E features:

0.055% Accuracy (0.04% Accuracy optional)

0.1% Stability per 10 years

90 ms Response Time

Exida and TUV SIL 2 / SIL3 Certified

MWP 2,300 psi (MWP 3,600 psi option)

Local Parameter Setting (LPS)

Yokogawa EJA110E more model:

EJA110E-FMS5G-919DB/KS26/D4/M01/T12

EJA110E-FMS5G-919DA/NS25/D4/M01/T12

EJA110E-JMS4G-917DB/FU1

EJA110E-JMS4G-712DD/D4

EJA110E-JMS4G-912NB

EJA110E-DMS4G-73CDD/KF22/D3/T12/HD

EJA110E-DMS4G-73CDD/NF2/D3/T12/HD
