ASCO series 320 solenoid valves - 3 way 3/2 Normally Closed, Normally Open, Universal - 1/4 to 3/8 - Brass, Stainless Steel - Media: Air, Inert Gas, Light Oil, Water. The ASCO Series 320-s are general-service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.

ASCO series 320 Solenoid Valves Features:
● All NPT connections are in the valve body to allow in-line piping
● No minimum operating pressure differential required
● Available in brass and stainless-steel constructions
● Mountable in any position
● Long-life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications. Easily handles rapid cycling or continuous energization
● Harsh-environment model offers low power consumption plus quick shutdown of valves and actuators. Valves are UL, CSA, ATEX, and IIECEx certified
● RedHat Next-Generation model offers voltage-ranging with low-power operation. Valves have Class I, Division 2 coils

Industries
• Power
• Oil ＆ Gas
• Medical & Life Science
• Chemical
• Food ＆ Beverage
We not only sell general service solenoid valves, but also electronically enhanced, miniature, process, dust collector valves & more!

If you need more ASCO solenoid valves, please click the "Need a Quote" button to fill in your quotation. We will reply you within 24 hours. Thank you!

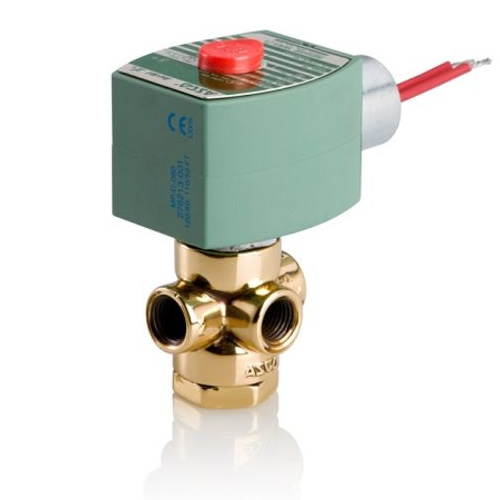

ASCO Series 320 three-way general service solenoid Valve - ASCO 8320 Solenoid Valve
