Rosemount 5301HA1H1N5AE01008ABE1MA Guided Wave Radar Level Transmitters provide industry leading measurement capabilities and reliability in liquids.

The Rosemount 5300 Level Transmitter is ideal for challenging measurements on liquids, slurries, and solids, offering state of the art reliability and safety features in level and interface applications. Rosemount 5300 offers several advantages such as easy installation, no need for calibration, and is unaffected by process conditions.

Guided Wave Radar is a continuous level measurement technique that offers several advantages. It is virtually unaffected by temperature, pressure, and vapor gas mixtures. It has no moving parts and therefore requires little or no maintenance. It measures the level directly and is therefore unaffected by most fluid property changes, including but not limited to density and viscosity changes.

Features

■ 5301 for level of liquids or submerged interfaces. Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe)

■ 5302 for level and interface liquids. Guided Wave Radar Liquid Level and Interface Transmitter

■ 5303 for level of solids

■ Time domain reflectometry (TDR) measurement principle

■ SST, Monel, Hastelloy or PTFE-covered SST probe materials

■ 4-20mA with superimposed HART or Fieldbus communication output

■ Up to 752°F process temperature

■ Up to 5000 psi (345 bar) process pressure at 100°F

■ Intrinsic safety or Explosion/Flameproof Ex-Approvals

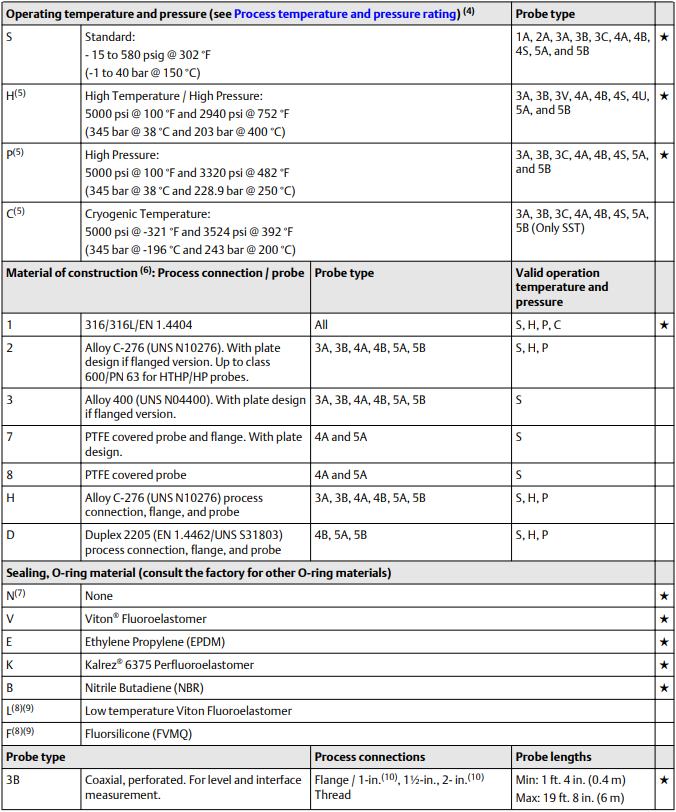

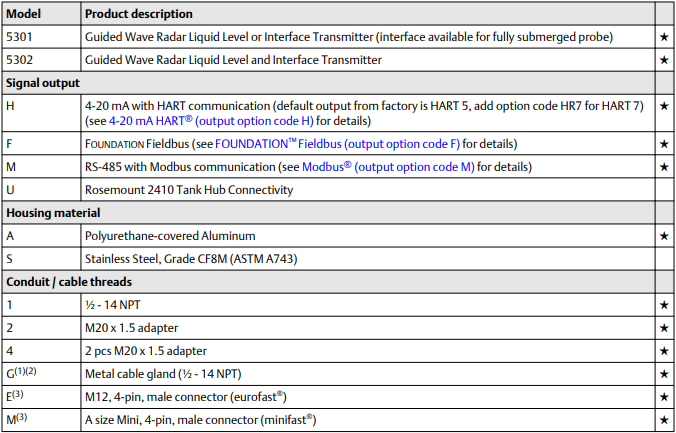

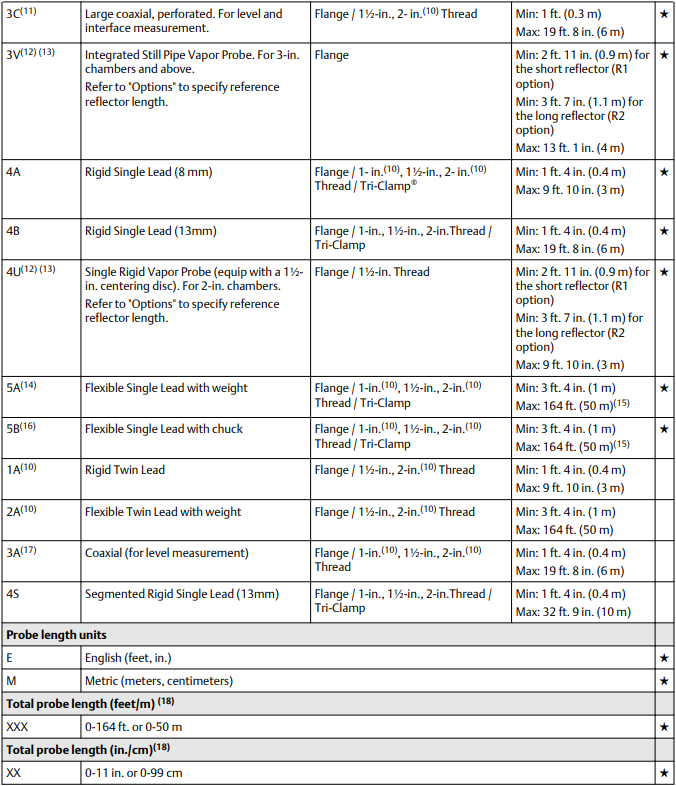

Rosemount 5300 Level Transmitter Ordering information:

......

Rosemount 5300 Level Transmitter models:

5301HA1S1V5BE00001RANA

5301HA1S1V5BE00001RANAXC

5301HA1S1V5BE00001RANAB1

5301HA1S1V5BE00001RANAB1XC

5301HA1S1V5BE00001RANAB2

......
