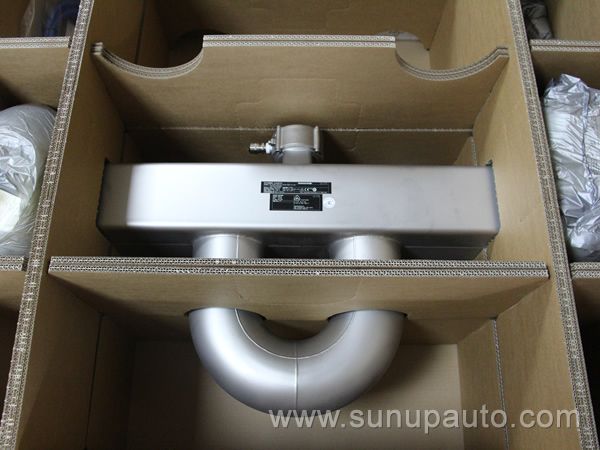

Yokogawa RCUS39S-80BA10-0C5A-NF21-2-JA1 /BG/CN/P3/L005 ROTAMASS Total Insight, Rotamass Supreme Coriolis Mass Flowmeter.

The Coriolis flowmeter with superior performance under demanding conditions.

The successful Rotamass series has been progressively developed and is also newly equipped with the latest technology. This meter delivers unsurpassed performance for demanding and critical applications with superior aeration handling and advanced diagnostic functionality.

Typical Applications:

Batching

Burner control

Feed and product control

Filling and dosing

Gas void fraction

In-line concentration and density

Loss control

Material and mass balance

Net oil computing

Process control

Solvents

Water cut

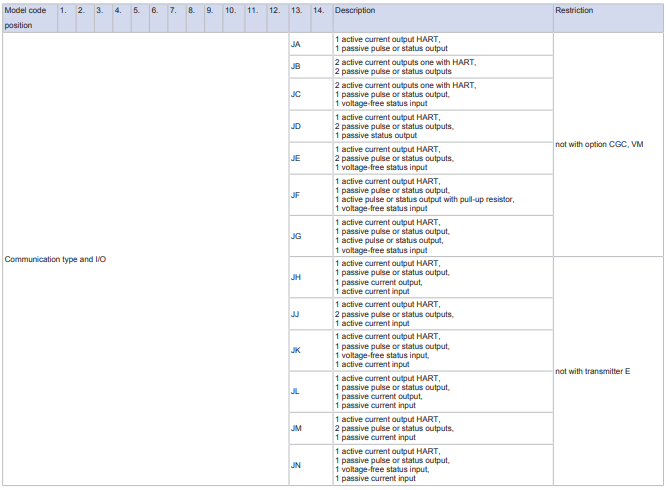

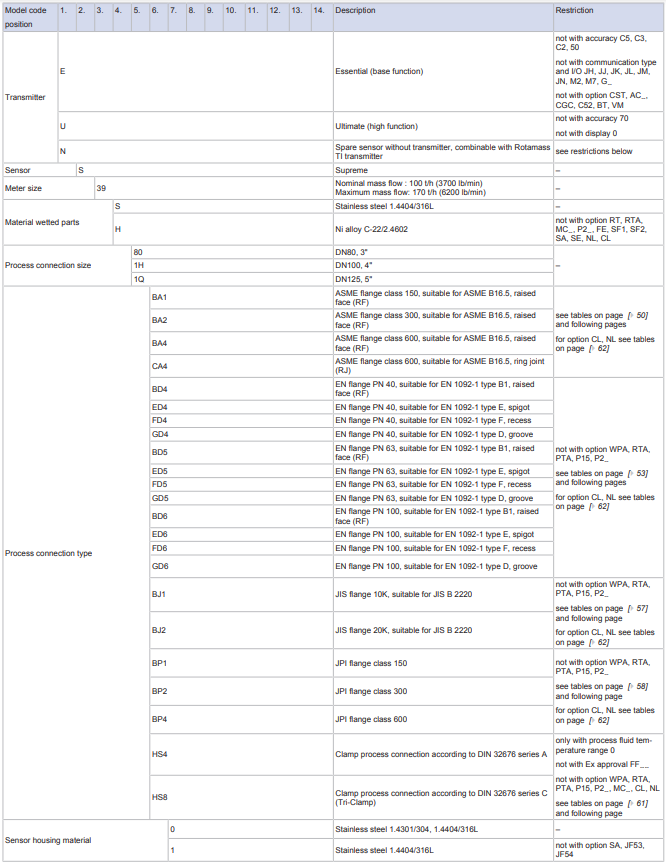

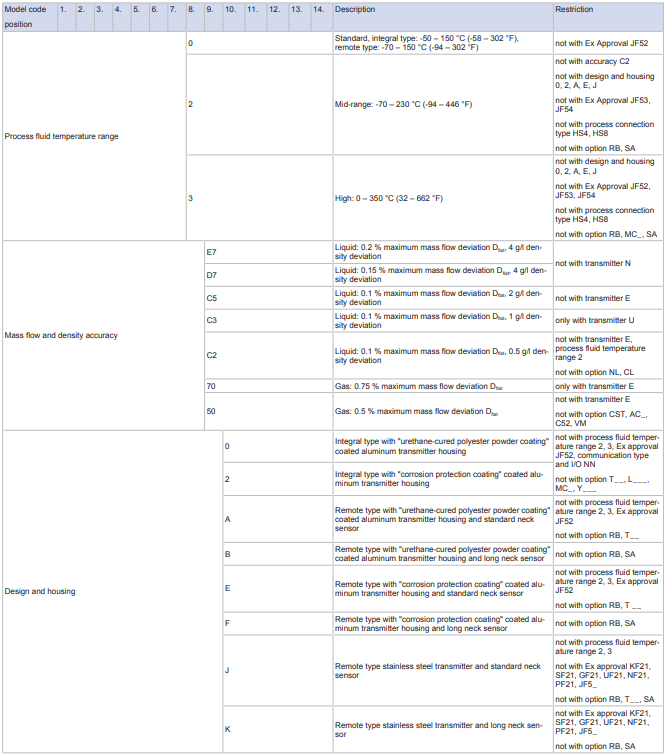

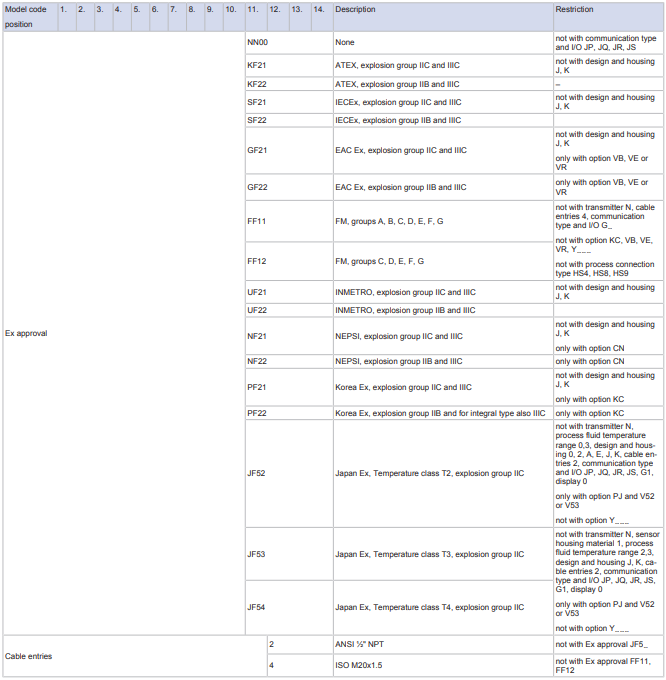

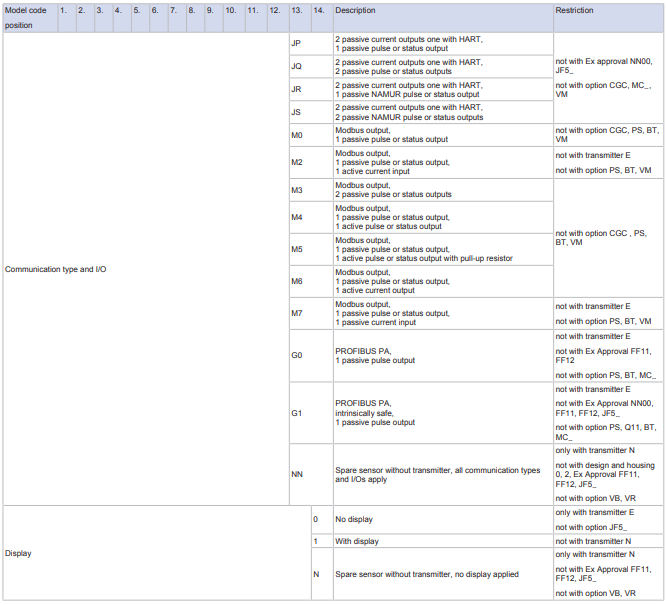

Overview model code Supreme 39

Ordering information

Rotamass Supreme Coriolis Mass Flowmeter:

Meter sizes: Supreme 34, Supreme 36, Supreme 38, Supreme 39

Connection sizes:

▪ DN15, DN25, DN40, DN50, DN65, DN80, DN100, DN125

▪ ⅜", ½", ¾", 1", 1½", 2", 2½", 3", 4", 5"

Maximum mass flow: 170 t/h (6200 lb/min)
