Autonics KPN5200-000 bar graph temperature controller, Autonics KPN Series. Power supply : 100-240VAC~ 50/60Hz . Input type_RTD : JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types) . Input type_TC : K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types) . Input type_Analog : ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types) . Control method : ON/OFF control, P, PI, PD, PID control.
The KPN series high performance digital process controllers offer high-speed sampling speed of 50 ms and high display accuracy of ±0.3%. The large, high luminance LED dual display provides clear PV and SV readings with bar graph display of control output value (MV). The series also feature high performance control with independent heating/cooling control and automatic/manual control functions.
Autonics KPN Series Temperature Controllers Main features:
● High speed sampling of 50ms and ±0.3% display accuracy
● Enable to check control output operation amount by adopting bar graph
● Simultaneous heating/cooling control and automatic/manual control for high performance control
● Selection function of current output or SSR drive output
● Parameter setting available via PC (USB and RS485 communication)
- Free device comprehensive management program (DAQMaster)
* Communication converter sold separately: SCM-US(USB/Serial converter), SCM-38I(RS232C/RS485 converter) SCM-US48I(USB/RS485 converter)
● Multi-SV (max. 4) function (select via digital input terminal)
● Heater break alarm
* CT sold separately: CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
● Small size (rear length: 60mm)
● Multi input/multi range

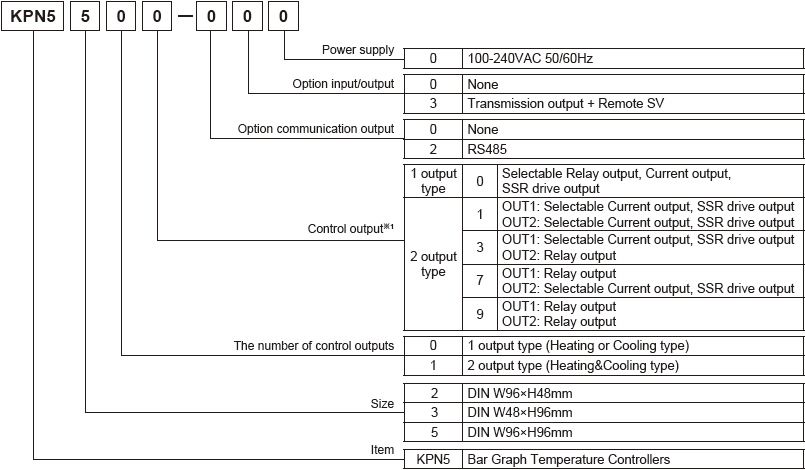

Autonics KPN Series Temperature Controllers ordering information
