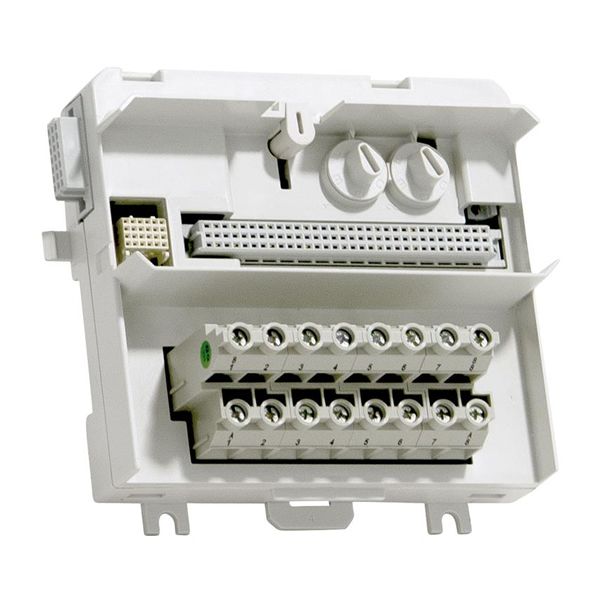

ABB TU831V1 3BSE013235R1 Extended Module Termination Unit (MTU), 250V, 2x8 signal terminals. The TU831V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

ABB TU831V1 3BSE013235R1 Extended Module Termination Unit Features and benefits

● Greater connection area for larger wires.

● Up to 8 isolated channels of field signals.

● Connections to ModuleBus and I/O modules.

● Mechanical keying prevents insertion of the wrong I/O module.

● Latching device to DIN rail for grounding.

● DIN rail mounting.
