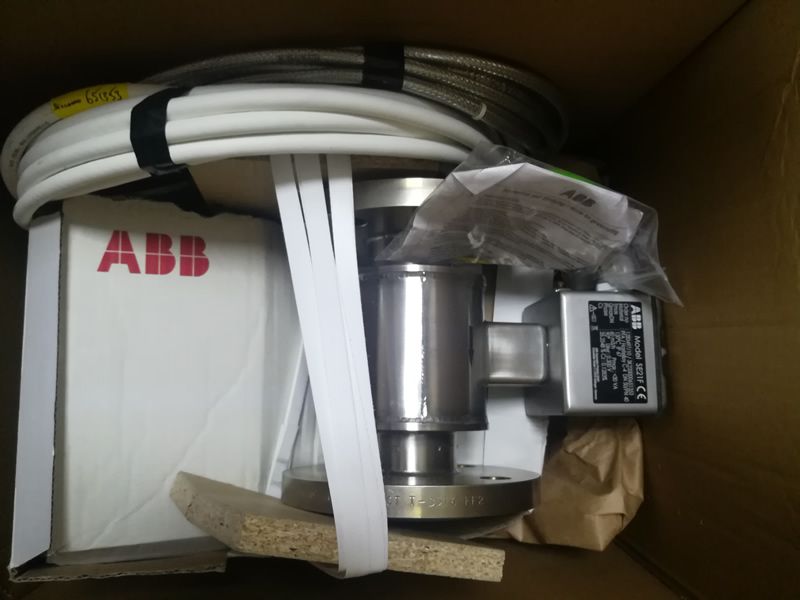

ABB FSM4000-SE21F electromagnetic flowmeter.

Valid for software versions C.10 and higher

Model:

FSM4000-SE41F

FSM4000-SE21

FSM4000-SE21F

FSM4000-S4

Measurement made easy

The all-purpose flowmeter for conductive fluids

Function

— Electromagnetic flowmeters can be used to accurately measure the flowrate of liquids, slurries, pastes and sludges with an electrical conductivity of at least 20 μS/cm (opt. 5/0.5 μS/cm).

Applications

— The system is specially designed to measure liquids in the pulp & paper and food & beverage industries. It can be used to measure fast changing processes, two phase liquids, continuous and pulsating flows (piston pump application).

Benefits

— Digital signal processing (DSP) and zero stability ensure long-term stability and accuracy in both flow directions.

— Enhanced diagnostic functions and monitoring of coil and electrode circuits as well as magnetic field for increased operational stability. Verification via fingerprint.

Key features

— Pressure equipment designed acc. to PED Directive 97/23 EC

— Meter size DN 1 … DN 1000 (1/25 ... 40“)

— Accuracy < ± 0.5% of rate (> DN 2)

— Fluid temperature -40 … 130 °C (-40 ... 266 °F) (opt. 180 °C [356 °F])

— Hygienic certification: 3A

— Liners, PFA, PTFE, ETFE, hard or soft rubber, ceramic carbide

— Standardized installation lengths for DIN, ASME B16.5 or JIS B2210-10K flanges

— AC / DC supply power
