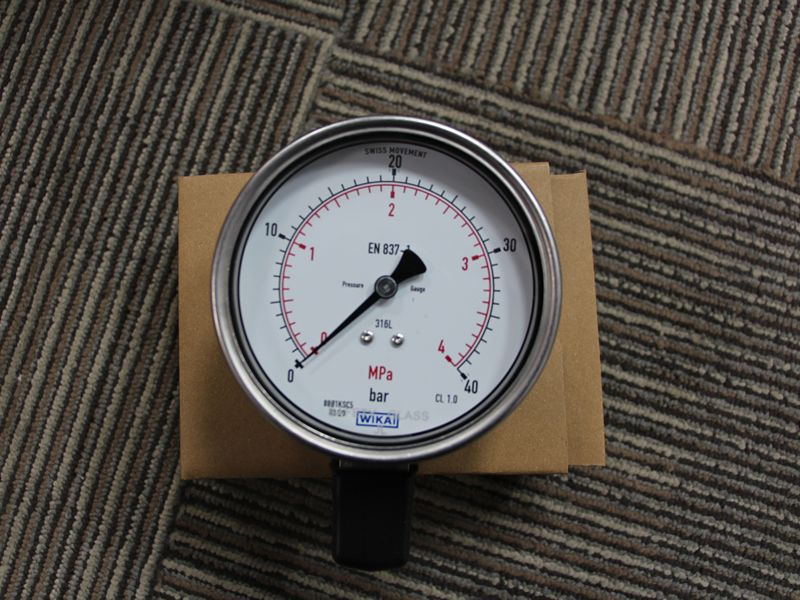

Models 232.50, 233.50. Bourdon tube pressure gauge, stainless steel. For the process industry, standard version, NS 63, 100 and 160.

Applications

With liquid-filled case for applications with high dynamic pressure pulsations or vibrations

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience

Process industriy: Chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology, machine building and plant construction

Special Features

Excellent load-cycle stability and shock resistance

All stainless steel construction

German Lloyd approval

Scale ranges up to 0 … 1,600 bar

Description

Design
EN 837-1

Nominal size in mm
63, 100, 160

Accuracy class
NS 63: 1.6
NS 100, 160: 1.0

Scale ranges
NS 63: 0 ... 1 to 0 ... 1,000 bar
NS 100: 0 ... 0.6 to 0 ... 1,000 bar
NS 160: 0 ... 0.6 to 0 ... 1,600 bar
