These hardened, compact managed industrial DIN rail Ethernet switches provide an optimum degree of flexibility with several thousand variants.

Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are available with different Fast Ethernet uplink ports – all copper, or 1, 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities with 2 Gigabit ports and 8, 16 or 24 Fast Ethernet ports. The configuration includes 2 Gigabit ports with TX or SFP slots. The RS40 compact OpenRail managed Ethernet switches can accommodate 9 Gigabit ports. The configuration includes 4 x Combo Ports (10/100/1000BASE TX RJ45 plus FE/GE-SFP slot) and 5 x 10/100/1000BASE TX RJ45 ports.

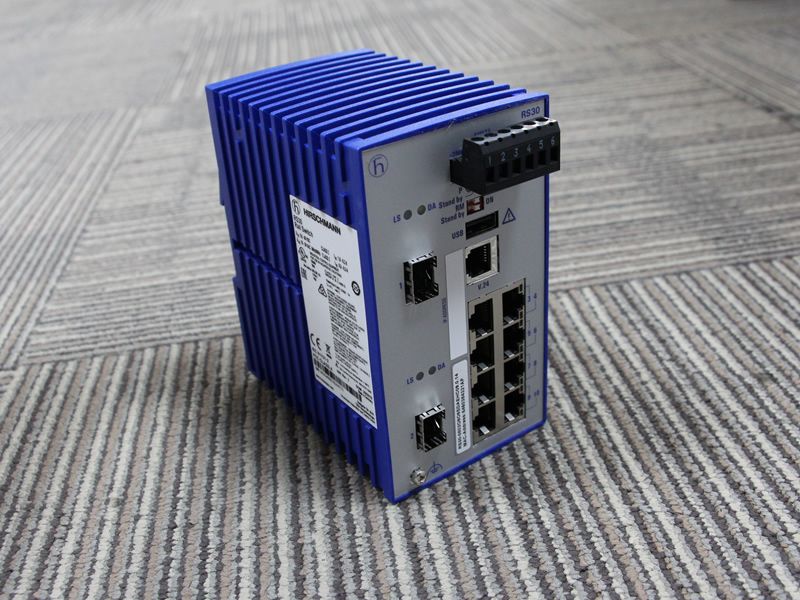

RS20/30/40 Managed Switches:

Description: Managed Gigabit / Fast Ethernet industrial switch for DIN rail, store-and-forward-switching, fanless design ; Software Layer 2 Enhanced

Port type and quantity: 10 ports in total: 8 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x Gigabit SFP-slot ; Uplink 2: 1 x Gigabit SFP-Slot

Power supply/signaling contact: 1 x plug-in terminal block, 6-pin

V.24 interface: 1 x RJ11 socket

USB interface: 1 x USB to connect auto-configuration adapter ACA21-USB

Operating Voltage: 12/24/48V DC (9,6-60)V and 24V AC (18-30)V (redundant)

Power consumption: max. 8.9 W

Power output in BTU (IT)/h: max. 30.4
