Siemens 6EP1334-3BA10, SITOP PSU200M 10 A Stabilized power supply.
May
28, 2020

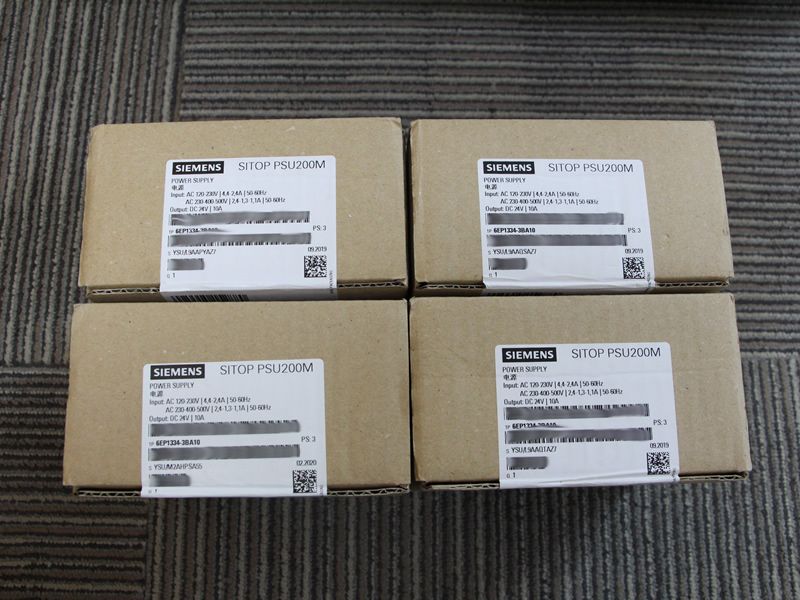

Siemens 6EP1334-3BA10
SITOP PSU200M 10 A Stabilized power supply input: 120/230-500 V AC output: DC 24 V/10 A
Features and Benefits
• Slim design
• Power boost with 3 times rated current for tripping protective devices
• Extra power with 1.5 times rated current for brief functional overload
• Selectable short circuit response between constant current and restart
• Symmetrical load distribution can be selected for parallel operation
• Operating state on 3 LEDs
• High efficiency up to 94%
• Temperature range: -25°C to 70°C
6EP1333-3BA10
120-230/230-500 VAC input, 24 V/5 A output
6EP1334-3BA10
120-230/230-500 VAC input, 24 V/10 A output
6EP1336-3BA00
120/230 VAC input, 24 V/20 A output
6EP1337-3BA00
120/230 VAC input, 24 V /40 A output
Article Number (Market Facing Number): 6EP1333-3BA10
Product Description: SITOP PSU200M 5 A Stabilized power supply input: 120/230-500 V AC output: 24 V DC/5 A
Product family:1- and 2-phase, 24 V DC
Product Lifecycle (PLM): PM300: Active Product
| Input | ||
| Input | 1-phase and 2-phase AC | |
| ● Note | Set by means of selector switch on the device | |
| Supply voltage | ||
| ● 1 at AC | 120 ... 230 V | |
| ● 2 at AC | 230 ... 500 V | |
| Input voltage | ||
| ● 1 at AC | 85 ... 264 V | |
| ● 2 at AC | 176 ... 550 V | |
| Wide-range input | Yes | |
| Overvoltage resistance | 1300 Vpeak, 1.3 ms | |
| Mains buffering at Iout rated, min. | 25 ms; at Vin = 120/230 V, typ. 150 ms at Vin = 400 V | |
| Rated line frequency 1 | 50 Hz | |
| Rated line frequency 2 | 60 Hz | |
| Rated line range | 47 ... 63 Hz | |
| Input current | ||
| ● at rated input voltage 120 V | 4.4 A | |
| ● at rated input voltage 230 V | 2.4 A | |
| ● at rated input voltage 500 V | 1.1 A | |
| Switch-on current limiting (+25 °C), max. | 35 A | |
| I²t, max. | 4 A²·s | |
| Built-in incoming fuse | T 6.3 A (not accessible) | |
| Protection in the mains power input (IEC 898) | Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V | |
| Output | ||
| Output | Controlled, isolated DC voltage | |
| Rated voltage Vout DC | 24 V | |
| Total tolerance, static ± | 3 % | |
| Static mains compensation, approx. | 0.1 % | |
| Static load balancing, approx. | 0.1 % | |
| Residual ripple peak-peak, max. | 50 mV | |
| Spikes peak-peak, max. (bandwidth: 20 MHz) | 200 mV | |
| Adjustment range | 24 ... 28.8 V | |
| Product function Output voltage adjustable | Yes | |
| Output voltage setting | via potentiometer | |
| Status display | Green LED for 24 V OK | |
| Signaling | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" | |
| On/off behavior | Overshoot of Vout approx. 3 % | |
| Startup delay, max. | 1 s | |
| Voltage rise, typ. | 50 ms | |
| Rated current value Iout rated | 10 A | |
| Current range | 0 ... 10 A | |
| ● Note | +60 ... +70 °C: Derating 2%/K (at 120 V, 230 V) or 3.5%/K (at 400 V) | |
| Supplied active power typical | 240 W | |
| Short-term overload current | ||
| ● at short-circuit during operation typical | 30 A | |
| Duration of overloading capability for excess current | ||
| ● at short-circuit during operation | 25 ms | |
| Constant overload current | ||
| ● on short-circuiting during the start-up typical | 12 A | |
| Parallel switching for enhanced performance | Yes; switchable characteristic | |
| Numbers of parallel switchable units for enhanced performance | 2 | |
| Efficiency | ||
| Efficiency at Vout rated, Iout rated, approx. | 91 % | |
| Power loss at Vout rated, Iout rated, approx. | 24 W | |
| Power loss [W] during no-load operation maximum | 6 W | |
| Closed-loop control | ||
| Dynamic mains compensation (Vin rated ±15 %), max. | 0.1 % | |
| Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ. | 3 % | |
| Load step setting time 50 to 100%, typ. | 2 ms | |
| Load step setting time 100 to 50%, typ. | 2 ms | |
| Setting time maximum | 5 ms | |
| Protection and monitoring | ||
| Output overvoltage protection | < 35 V | |
| Current limitation, typ. | 12 A | |
| Property of the output Short-circuit proof | Yes | |
| Short-circuit protection | Alternatively, constant current characteristic approx. 12 A or latching shutdown | |
| Enduring short circuit current RMS value | ||
| ● typical | 12 A | |
| Overload/short-circuit indicator | LED yellow for "overload", LED red for "latching shutdown" | |
| Safety | ||
| Primary/secondary isolation | Yes | |
| Galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 | |
| Protection class | Class I | |
| Leakage current | ||
| ● maximum | 3.5 mA | |
| ● typical | 0.32 mA | |
| CE mark | Yes | |
| UL/cUL (CSA) approval | cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) | |
| Explosion protection | IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T3 | |
| FM approval | - | |
| CB approval | Yes | |
| Marine approval | ABS, DNV GL | |
| Degree of protection (EN 60529) | IP20 | |
| EMC | ||
| Emitted interference | EN 55022 Class B | |
| Supply harmonics limitation | EN 61000-3-2 | |
| Noise immunity | EN 61000-6-2 | |
| Operating data | ||
| Ambient temperature | ||
| ● during operation | -25 ... +70 °C | |
| — Note | With natural convection; startup tested starting from -40 °C nominal voltage | |
| ● during transport | -40 ... +85 °C | |
| ● during storage | -40 ... +85 °C | |
| Humidity class according to EN 60721 | Climate class 3K3, no condensation | |
| Mechanics | ||
| Connection technology | screw-type terminals | |
| Connections | ||
| ● Supply input | L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded | |
| ● Output | +, -: 2 screw terminals each for 0.2 ... 2.5 mm² | |
| ● Auxiliary | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm² | |
| Width of the enclosure | 70 mm | |
| Height of the enclosure | 125 mm | |
| Depth of the enclosure | 121 mm | |
| Required spacing | ||
| ● top | 50 mm | |
| ● bottom | 50 mm | |
| ● left | 0 mm | |
| ● right | 0 mm | |
| Weight, approx. | 0.8 kg | |
| Product feature of the enclosure housing for side-by-side mounting | Yes | |
| Installation | Snaps onto DIN rail EN 60715 35x7.5/15 | |
| Electrical accessories | Buffer module | |
| MTBF at 40 °C | 1 055 408 h | |
| Other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) | |
