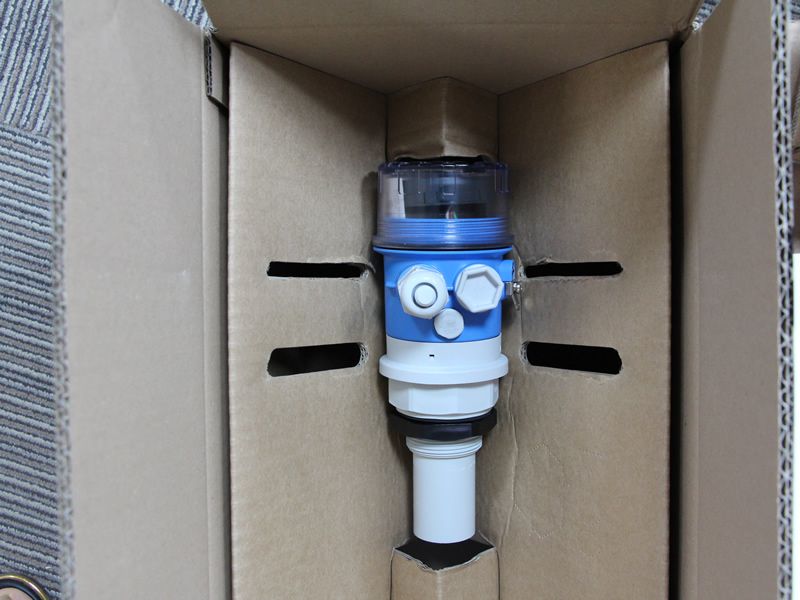

Endress+Hauser Prosonic FMU30-AAHEAAGGF Ultrasonic Level Measurement, Compact transmitters for non-contact level measurement of fluids. The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks.

Benefits

Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable

Envelope curves on the on-site display for simple diagnosis

Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate

Non-contact measurement method minimizes service requirements

Installation possible from thread G 1½ or 1½ NPT upwards

Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Field of application

Two-wire instrument for continuous non-contact level and flow measurement.

Process connection: Thread

Temperature: -20 to +60°C (-4 to +140°F)

Pressure: +0.7 to +3bar (+10 to +44psi)

Maximum measuring distance:
Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),
Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)

Blocking distance:
Sensor 1½" 0.25m (0.8ft),
Sensor 2" 0.35m (1.15ft)

International explosion protection certificates
