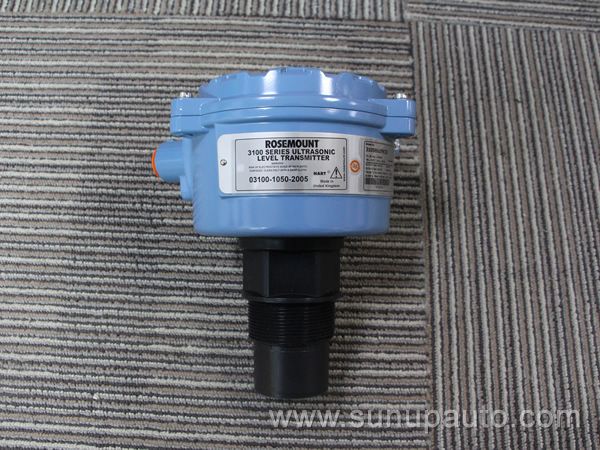

Rosemount™ 3105 Level Transmitter - Ultrasonic

The Rosemount 3105 Level Transmitter is a reliable and cost-effective solution optimized for level, volume and open channel flow measurement in hazardous areas. It gives a 4–20mA output with HART communication and is equipped with 2 integral relays for local action (eg. activate buzzer/ alarm). It is suitable for storage tanks, effluent pits, and buffer tanks. It features a local operator display with buttons for quick and easy commissioning and fully integrated temperature compensation for automatic speed of sound correction. The automatic false echo detection together with easy setup makes this a device you can trust.

Features

● Continuous non-contacting measurement with no moving parts

● Measures liquid level, distance to liquid, volume, or open channel flow calculations with pre-programmed library

● Hazardous area approvals

● Optional remote temperature sensor

● Automatic temperature compensation

Specifications

Operating Temperature: -22 to 158 °F (-30 to 70 °C)

Communication Protocol: 4–20 mA/HART®

Display/Interface: Integral push-buttons with LCD, Rosemount 3490 Controller, or AMS™ Device Manager, Field Communicator
